mergeway-cli gen-erd
Generates an Entity Relationship Diagram (ERD) of your data model.
mw gen-erd --path <output-file>
This command inspects your configuration and generates a visual representation of your entities and their relationships. It relies on Graphviz (specifically the dot command) to produce the output image.
Arguments
| Argument | Description |
|---|---|
--path | Required. The path where the generated image will be saved. The file extension determines the output format (e.g., .png, .svg). |
Examples
Generate a PNG image of your schema:
mw gen-erd --path schema.png
Generate an SVG:
mw gen-erd --path schema.svg

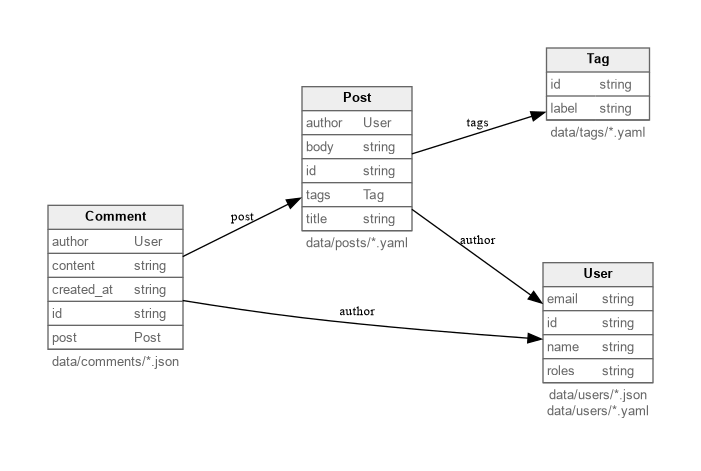

Example output, based on the full example:
Requirements
The dot executable from Graphviz needs to be installed and available in your system’s PATH.
